TigerMX-5 Settings
About This Page
Use this page to navigate the various settings pages.
Accessing This Page
An installer pin is required to access this page
This page can be accessed from:

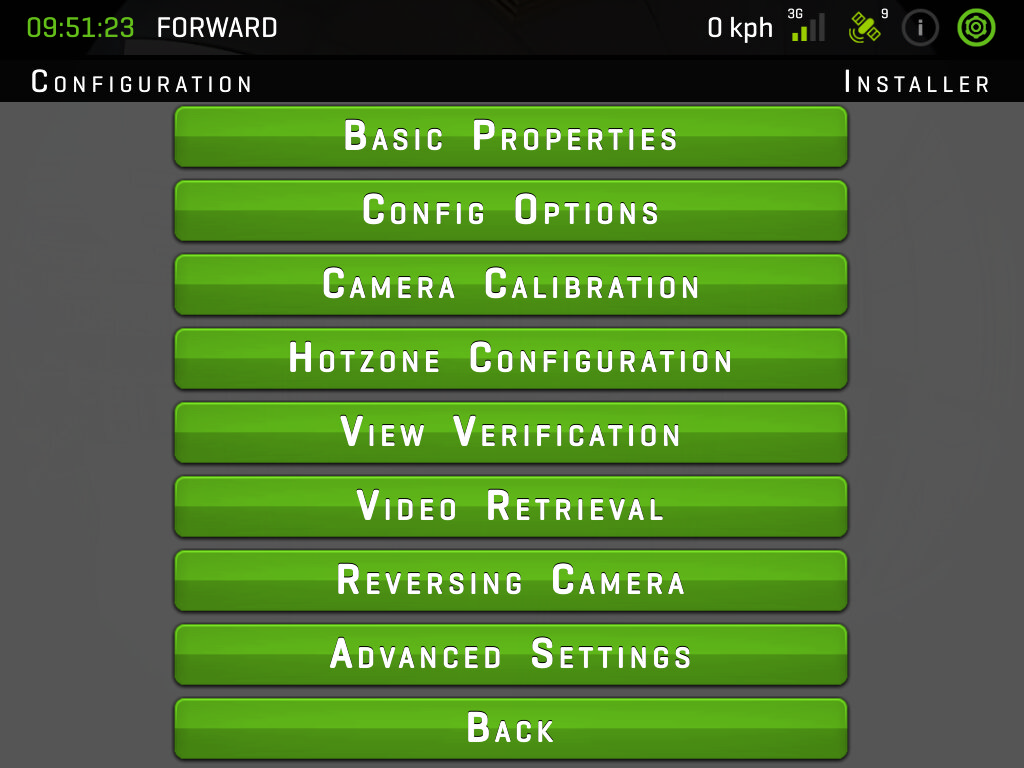

Page View
Page Usage
Used to navigate to one of the following pages:
- Basic Properties
- Config Options
- Camera Calibration
- Hotzone Configuration
- View Verification
- Video Retrieval
- Reversing Camera
- Advanced Settings
