Junction Box Wiring

Junction Box Wiring


Signal wiring diagram for junction box 12V/24V


Diagram 1 : Schematic for the junction box wiring bridge

Signal

Colour

Relay Row

Colour

Signal

Signal Description



1

Purple





2

Grey




Pink

3

Pink




Red/Green

4

Red/Green




Red/Yellow

5

Red/Yellow




Red/Black

6

Red/Black





7

White/Black





8

White/Red



Reverse


9

White/Green

Reverse

Signal from reverse to indicate vehicle is in reverse (trigger reverse override on system)

Bin Lifter


10

White/Yellow

Bin Lifter

Signal from Bin Lift Proxy to indicate lifter is active



11

White/Blue



Chassis Ground


12

Yellow

Chassis Ground

System must be earthed either to chassis or battery (Bridge earth inside Junction Box)


Blue

13

Blue





14

Brown




Red

15

Red





16

White





17

Green





18

Orange





19

Black



IGN


20

Orange

Ignition

Signal from accessories to indicate IGN is active

ISO


21

Orange

Isolator

Signal to trigger the relay

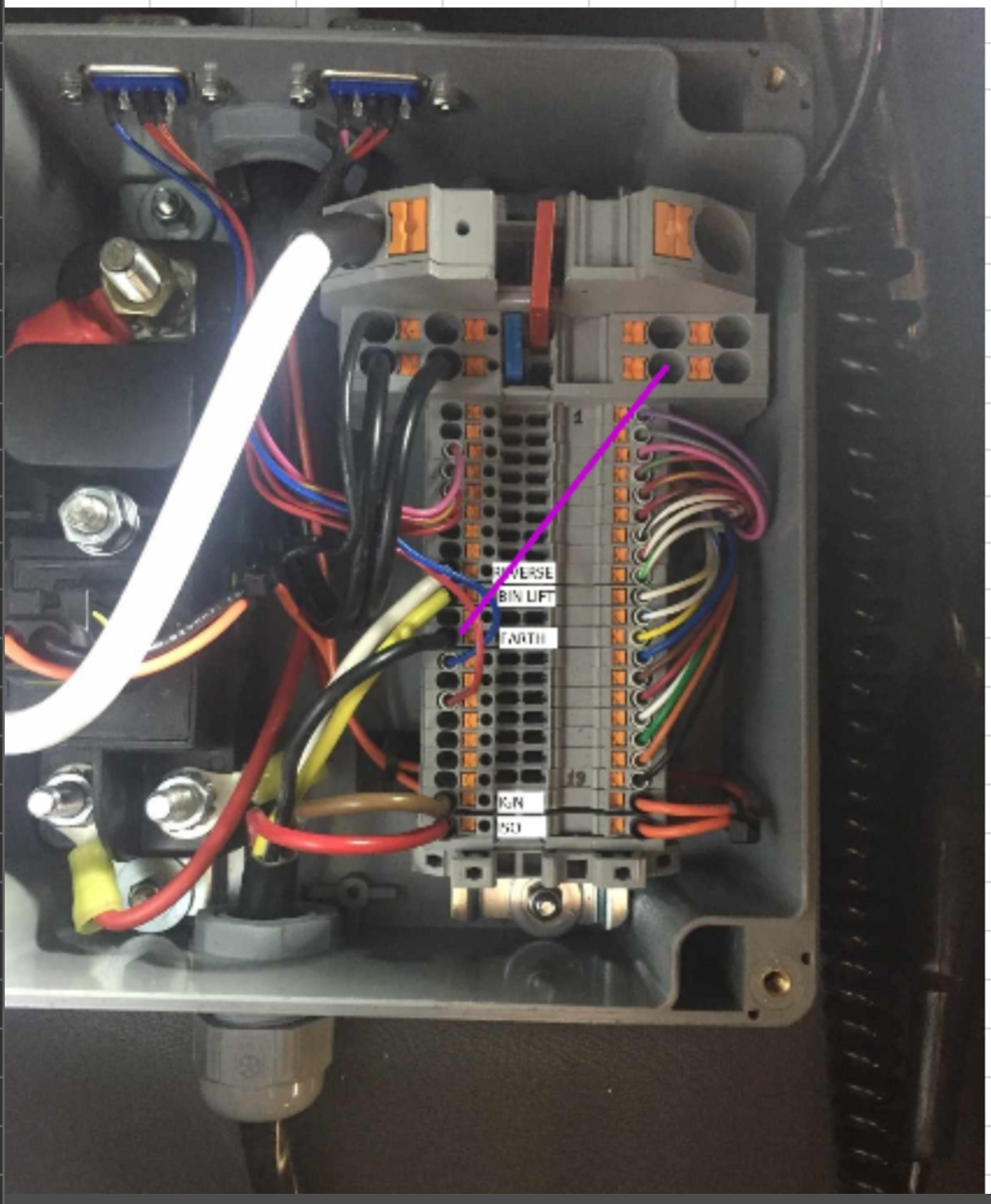

Diagram 1 : Junction Box wiring bridge pre install

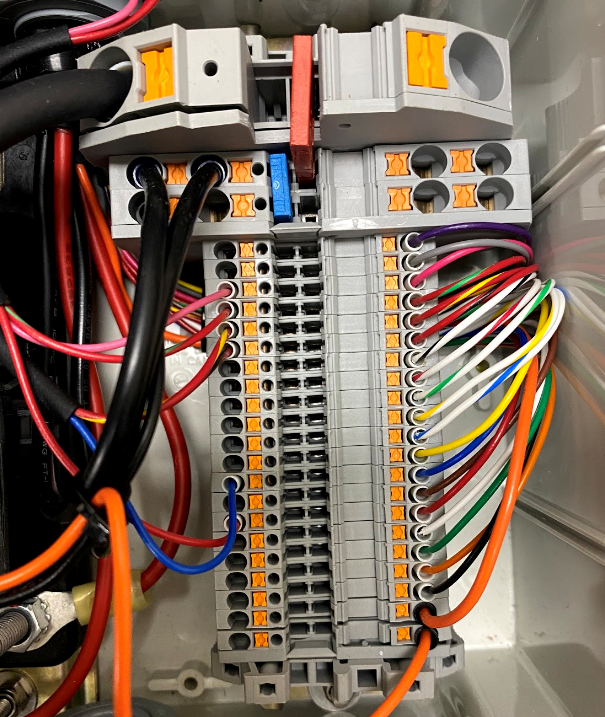

Diagram 2 : Junction Box wiring bridge post install

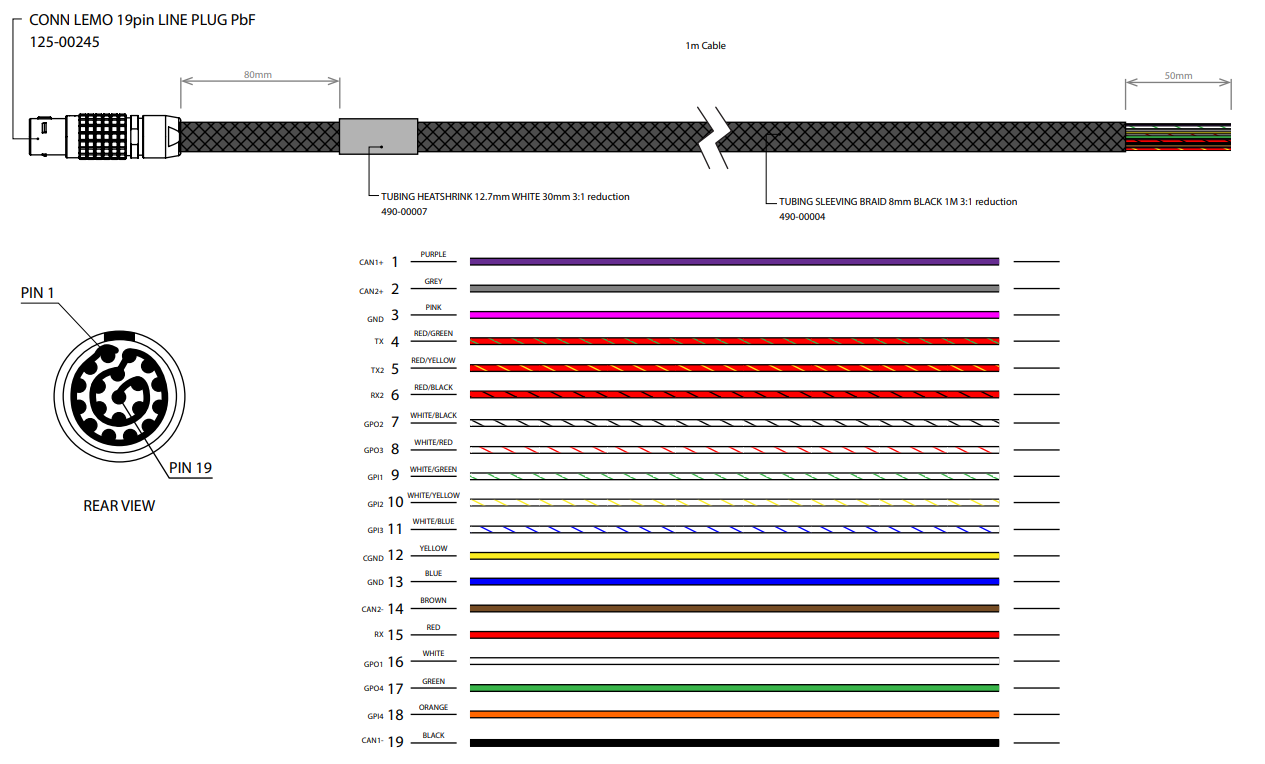

19 Pin Machine I-F Cable Assembly Diagram:
